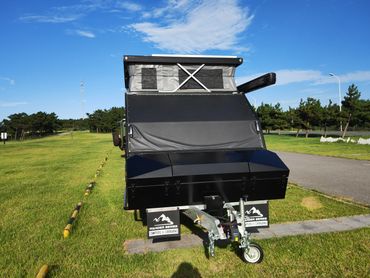

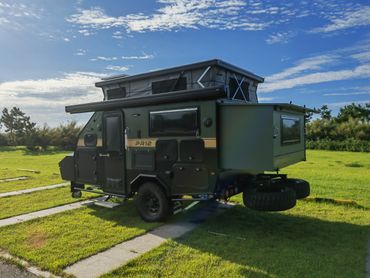

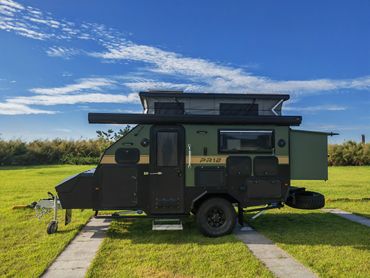

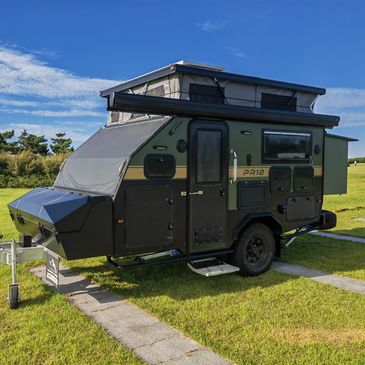

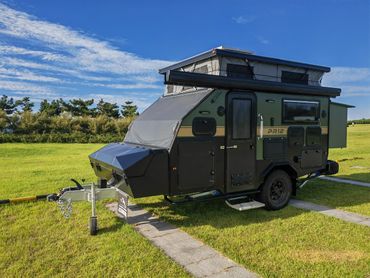

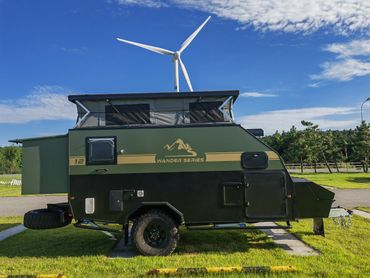

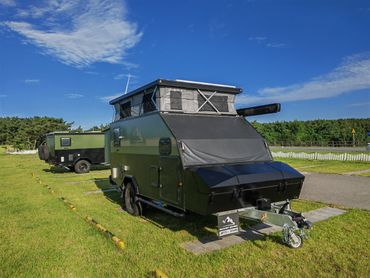

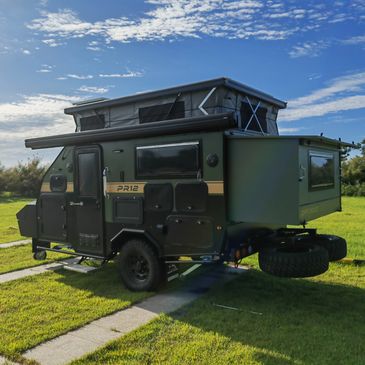

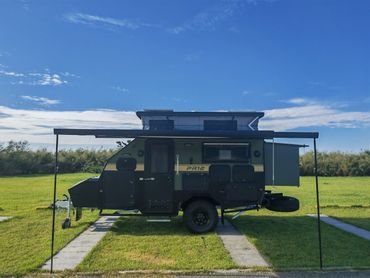

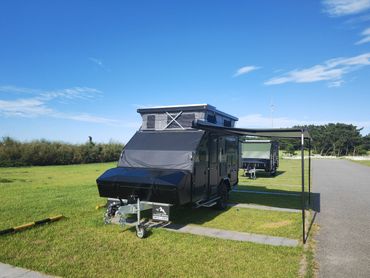

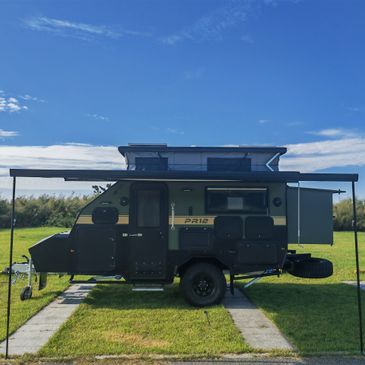

PR-12 Hybrid Caravan ● 12-15 FEET

• TARE: 1,960KG
• ATM  : 2,650KG
• Ball Weight: 160KG
• Occupants Capacity: 2
• Dimension: 5500(L)x2170(W)x2500(H)MM [Travelling] 6400(L)x2170(W)x3065(H)MM [Set Up]

CONSTRUCTION

• Aluminium Composite Wall with Box Tube Hot dipped steel frame

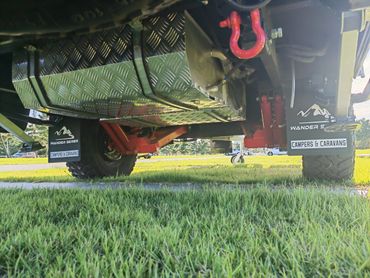

CHASSIS&DRAWBAR

• Fully galvanised Drawbar&Chassis (150x50x4.0MM)[Q345 Steel]
• Independent Coil Spring Suspension with

• TARE: 1,960KG
• ATM  : 2,650KG
• Ball Weight: 160KG
• Occupants Capacity: 2
• Dimension: 5500(L)x2170(W)x2500(H)MM [Travelling] 6400(L)x2170(W)x3065(H)MM [Set Up]

CONSTRUCTION

• Aluminium Composite Wall with Box Tube Hot dipped steel frame

CHASSIS&DRAWBAR

• Fully galvanised Drawbar&Chassis (150x50x4.0MM)[Q345 Steel]
• Independent Coil Spring Suspension with Double Shock Absorber
• ARK XO 3.5T Extreme Off Road Coupling
• 4xHeavy Duty Lockable&Adjustable Drop Down Stabiliser Legs
• 16" wheels with 265/75R16 off road tyres
• 12'' Heavy Duty Electric Brakes with Mechanical Handbrake&Electric Breakaway System
• ADR Compliant Safety Chain Standard
• 10'' Swing-up&Lockable jockey wheel
• 2x16'' Spare Tyres

ELECTRICAL SYSTEM

• Ample 3.5MM 12V Sockets Internal&External
• 240V Power
• USB port Internal&External
• 2x100Ah LiFePO4 Lithium Batteries

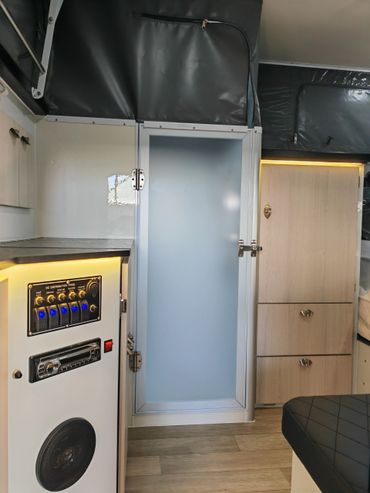

• Control Panel, VOLT+AMP Meter display with Water Tank Gauges
• Battery Charger: Renogy 30 Amp DC2DC Smart Charger; Renogy 30 Amp A/C Smart Charger
• Renogy 2000W 12V Pure Sine Wave Inverter Charger
• Renogy 30A Solar Charge Controller
• LED lights throughout&LED Kitchen lights, Internal&External courtesy lights
• LED brake&indicator lights, LED number plate &clearance lights
• Bed and Cabin LED Lights
• 400W Solar Panel
• 7-pin flat trailer connector
• 50Amp Anderson Plug for Car or Solar Charging
• Anderson Plug with HD fridge power feed
• Weatherproof  External 15Amp Power Inlet

INTERNAL

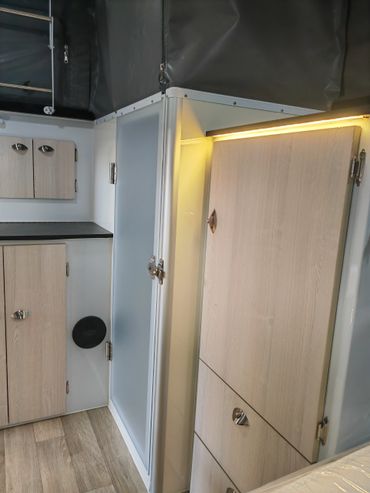

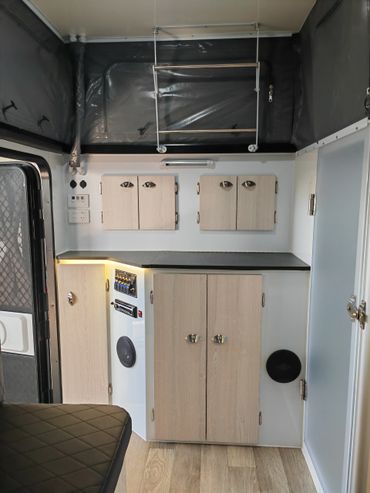

• Upper and lower cabinets
• Solid wood texture PVC flooring leather

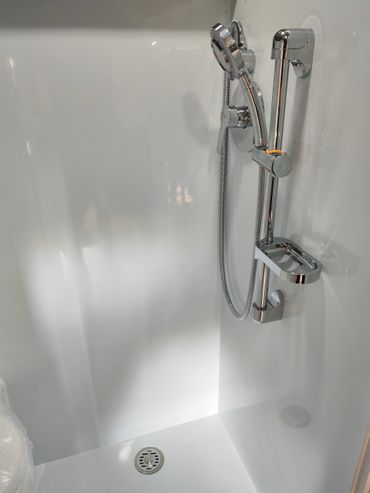

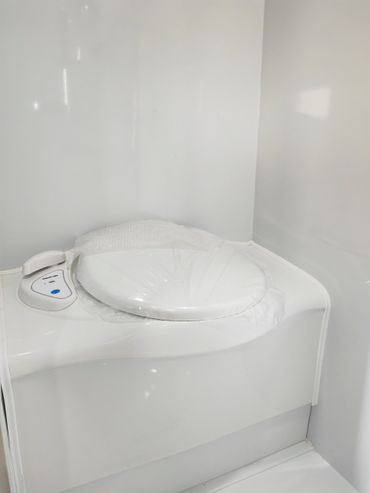

• Internal Ensuite with shower, THETFORD toilet&14L TRUMA Gas/Electricity hot water system
• Indoor wash basin (countertop fittings)

EXTERNAL

• Zincanneal Steel and Metallic Enamel Paint Standard
• Powder-coated Wheel Arch Flairs Standard
• 2x9KG Gas Bottle Holders
• 2x20L Jerry Can

INTERNAL

• Upper and lower cabinets
• Solid wood texture PVC flooring leather
• Internal Ensuite with shower, THETFORD toilet&14L TRUMA Gas/Electricity hot water system
• Indoor wash basin (countertop fittings)

EXTERNAL

• Zincanneal Steel and Metallic Enamel Paint Standard
• Powder-coated Wheel Arch Flairs Standard
• 2x9KG Gas Bottle Holders
• 2x20L Jerry Can Holders
• 2x100L Food grade stainless water tank with aluminium tank guard 12V Pump plumbed to kitchen&80L Grey water tank
• Multiple storage compartments with slide out drawers
• Fridge Slide 975Lx535Wx665H MM with extra pantry storage
• Ventilation Fan in Fridge compartment
• Picnic camping folding outdoor table
• 2x16'' Spare Tyres
• Rock Rails Bars
• Pinch-weld Rubber Seals on all Doors
• Quality water proof&Anti-Rust Locks
• 2xRecovery D Shackles
• Entry Handle including LED Light

CAMPING COMFORT

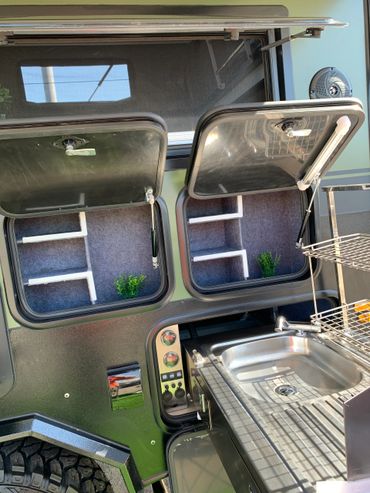

• Stainless Steel Slide Out Premium Kitchen with Washboard Sink, prep-space, utility draws, electric pump, Single Tap and Led light [1470x500x250MM]

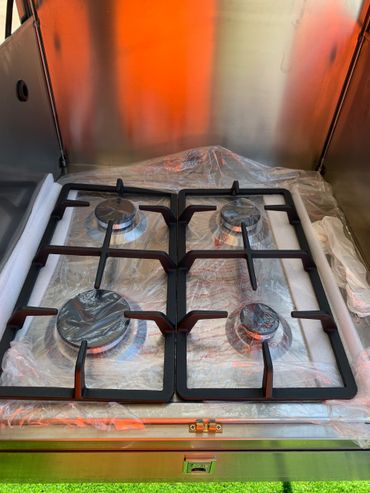

• AGA approved High output 4-burner gas stove with flame out protection, Fully plumped to front gas bottle holder
• Premium triple density foam Inner Spring Queen Size Bed
• Leatherette

CAMPING COMFORT

• Stainless Steel Slide Out Premium Kitchen with Washboard Sink, prep-space, utility draws, electric pump, Single Tap and Led light [1470x500x250MM]
• AGA approved High output 4-burner gas stove with flame out protection, Fully plumped to front gas bottle holder

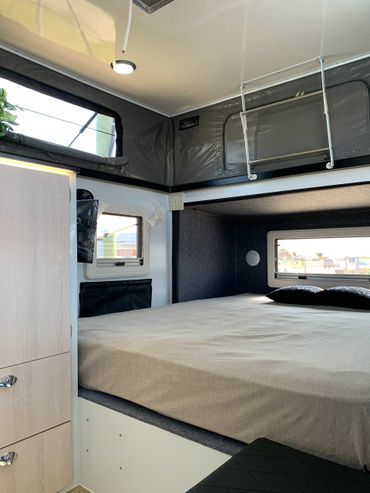

• Premium triple density foam Inner Spring Queen Size Bed
• Leatherette sofa seating
• Mosquito&midge proof netting
• Internal Windows with Midge Proof Netting
• Fan roof ventilation
• 12V Fans
• Bluetooth CD/Radio Stereo-System with Four Speakers
• Multiple Storage Cupboards and Wardrobe
• Double Glazed Windows, Reflective Curtains

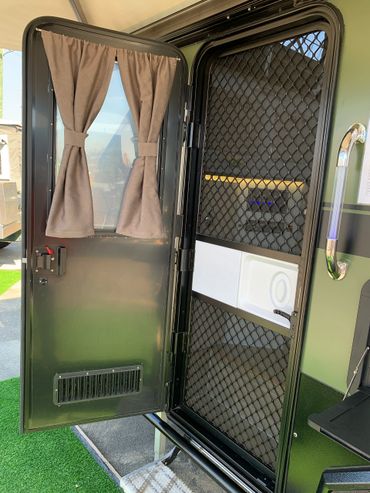

• Full size entry door with Flyscreen

BONOUS INCLUSIONS

• DOMETIC Reverse Cycle Air Conditioner
• 22'' HD Smart TV (Inc. Internal&External Mounts)
• Hot/Cold External shower with shower tent

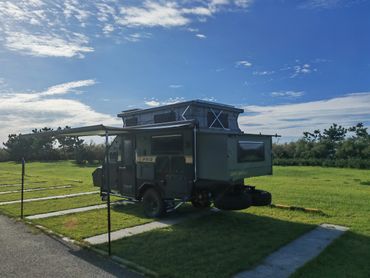

• Electric/Manual Awning
• Fully enclosed air inflation annex（420GSM TC Material）

OPTIONS

• Diesel Heater
• Security Camera
• Wireless Reversing Camera
• Dometic Dust Reduction System
• Electric Roof
• Internal Fridge
